Industry Standard WITSML Data Management Solutions and Mudlogging Services for Oil, Gas and Geothermal E&P Companies

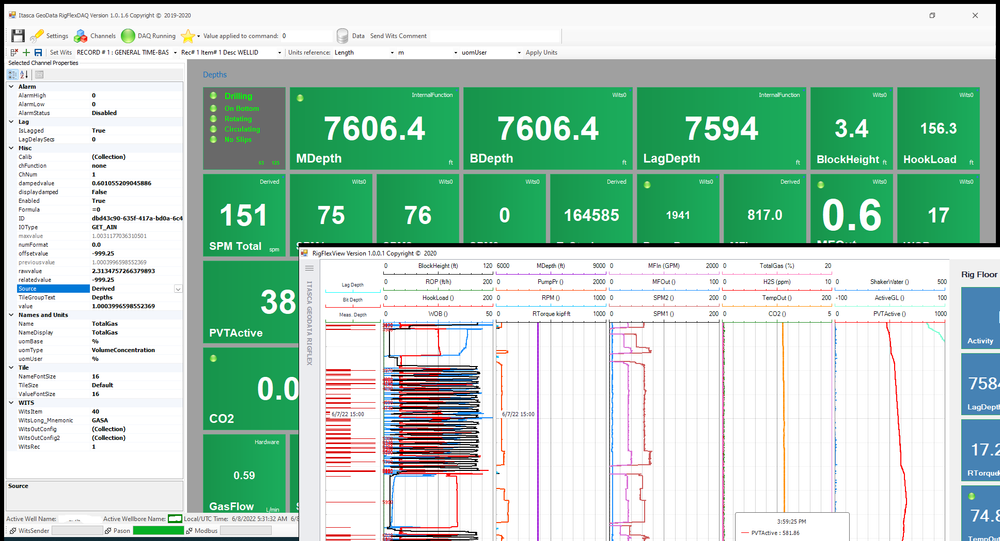

RigFlex DAQ

Rig Data Acquisition, processing and storage

Complete Mudlogging Data Management

  • Flexible - data channels may be added or modified while the system is running

  • The channel signal source may be WITS0, Hardware (DAQ), Internal or a user defined Formula that may use any channels value, constant and mathematical expressions

  • Flexible units of measurement always defined with value in storage
    Calculates Lag, Hydraulics, ROP, WOB, Fluid Gain/Loss, TVD, Rig Activity, etc.

  • Audio and visual Alarms

  • Simple to install and operate

  • MongoDB Data Storage

  • UTC data timestamps

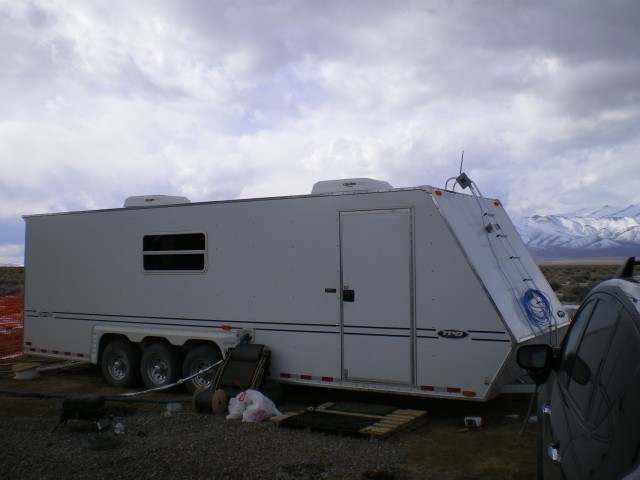

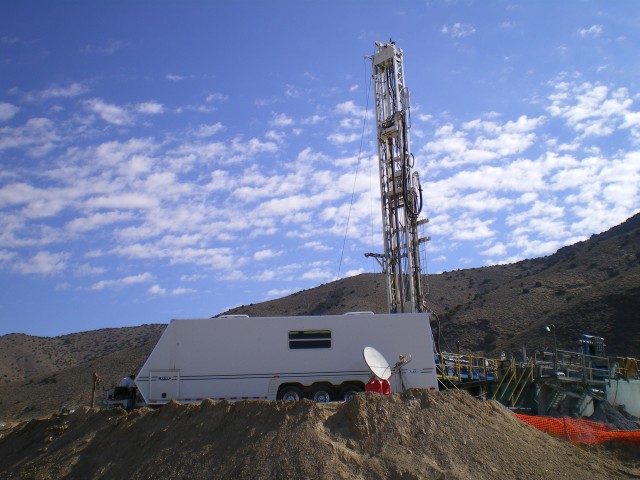

Mudlogging Standard Services and Equipment

  • Experienced four-year degreed Geologists

  • Full mudlogging software suite developed by Itasca GeoData

  • Real-time Web Access and WITSML Store

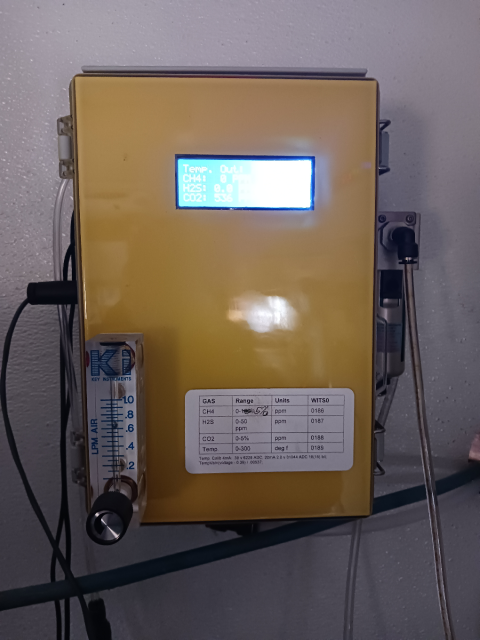

  • Fast 60-second C1-nC5 FID chromatograph, FID Total Gas, Infrared CO2, Solid Polymer H2S

  • Flowline mud temperature

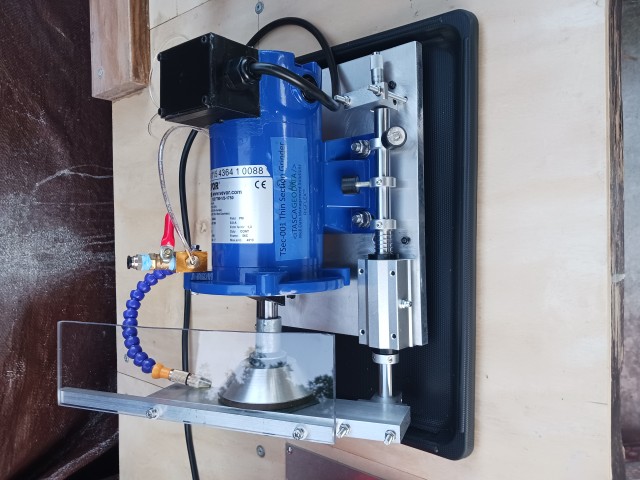

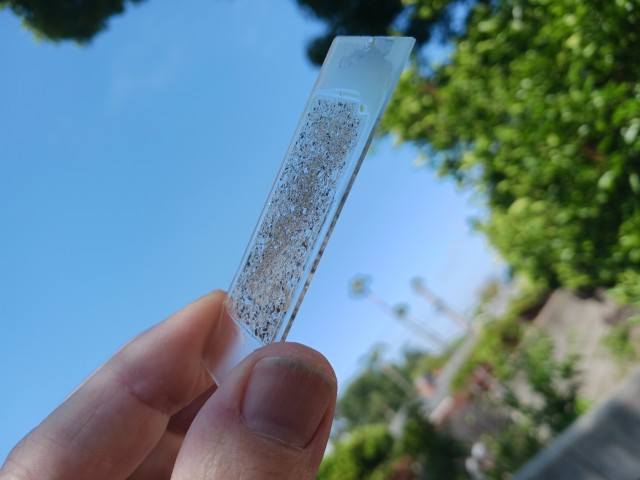

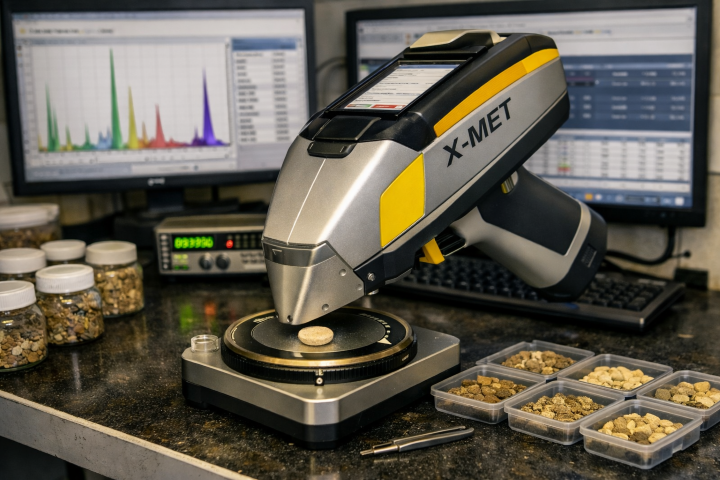

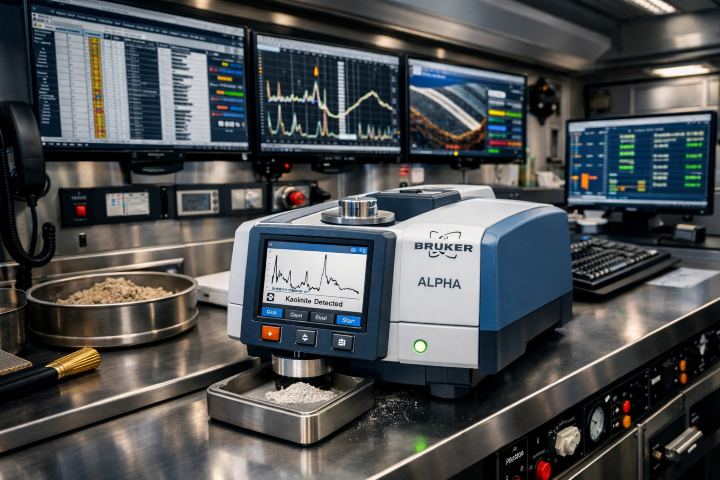

Optional Services

  • H2S Site Monitoring and Safety Equipment

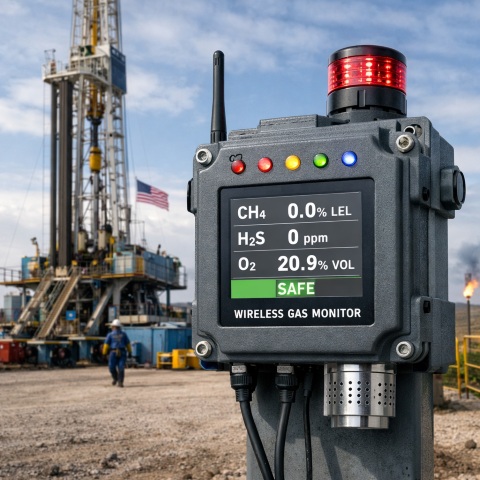

    • Class 1, Div 1 & 2 remote H2S monitoring stations with audio and visual signaling

      • Test gas

      • Four stations; shaker, pits, sub-base and rig floor as well as one standard inline gas sample sensor

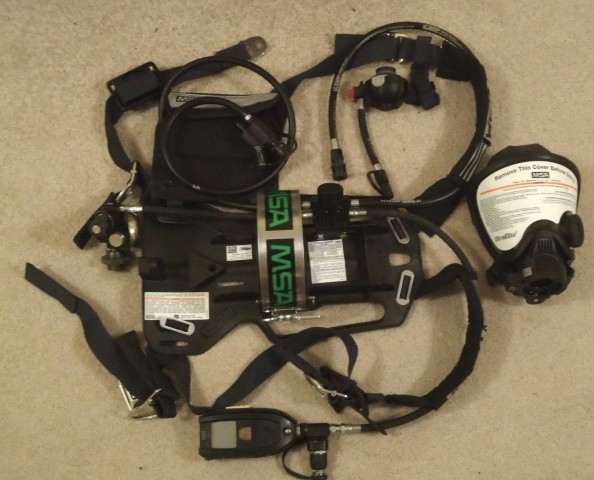

    • 30-minute SCBA packs

      • MSA M7 30 minute composite cylinder with current hydrotest and NIOSH certified (4 sets)

      • Integrated PASS device

      • Certified trainer

      • Fit test

    • PPE (including SCBA training) certified employees on-site to provide crew training and fit tests

      • OSH Act (5)(1) – General Duty Clause

      • 29 CFR 1910.132 General requirements

      • 29 CFR 1910.134—Respiratory Protection

      • NFPA 1852—Selection, Care, and Maintenance of Open-Circuit Self-Contained Breathing Apparatus

    • Wearable H2S monitors

    • Function tests/drills and calibration

  • Online Mass Spectrometer tuned to clients requirements

    • fully automated continuous-flow gas analyzer

    • Organic species: Total gas, C1-C10 hydrocarbons and more

    • Petroleum type and quality, Geochemical fingerprinting, Geothermal and Helium wells, porosity/permeability, fault/fracture zones and more applications.

    • Inorganic species: Hydrogen, helium, carbon dioxide, nitrogen, oxygen, argon; Sulfur species: SO/SO2, COS, CS2

    • Minimal Drift

    • Remote access/unmanned operation

  • Automatic Calcimeter with 4 independent reaction chambers integrated with the RigFlex DAQ system

  • Mud and Shale Methylene Blue Tests (MBT)

  • Laboratory Fume Hood

  • Additional rig sensors as requested including full rig-site EDR system

Mudlogging Auto Calcimeter

AC 4 Auto Calcimeter Equipment

Auto Calcimeter AC 4

The Auto Calcimeter is a valuable tool used to obtain “high density” calcite equivalent measurements while drilling to distinguish between CaCO3 and non-calcite (primarily dolomite) content in cuttings. This is information is useful as a correlation tool as well as addressing completion scaling issues.

The AC 4 was designed and tested by Itasca GeoData to comply with ASTM D4373 − 21 and fully integrated with our RigFlex DAQ software.

  • 4 independent and simultaneous use reaction chambers

  • +/- 2% Calcite equivalent accuracy

  • .001g accuracy scale

  • Orbital Shaker

  • Lab equipment and PPE (Lab grade CaCO3, 10% v/v HCl, 100 mesh Seive, mortar/pestle, spare fittings, etc.)

  • High resolution 14-bit ADC DAQ box sending JSON data stream every second to the RigFlex DAQ system.

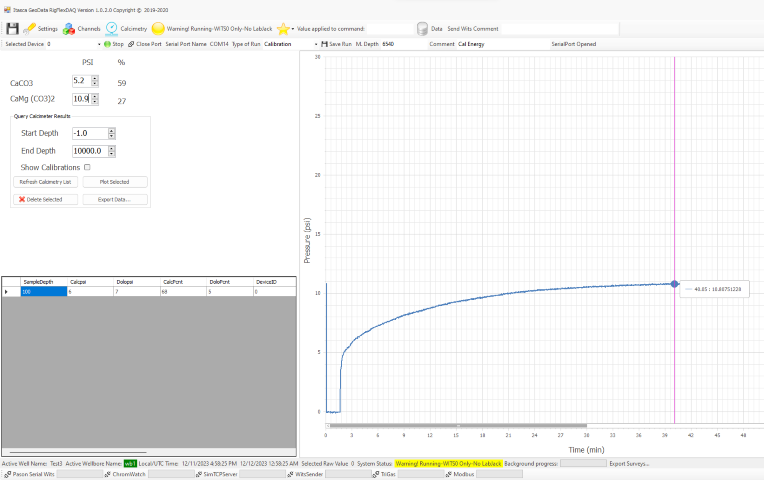

Auto Calcimetry RigFlex display

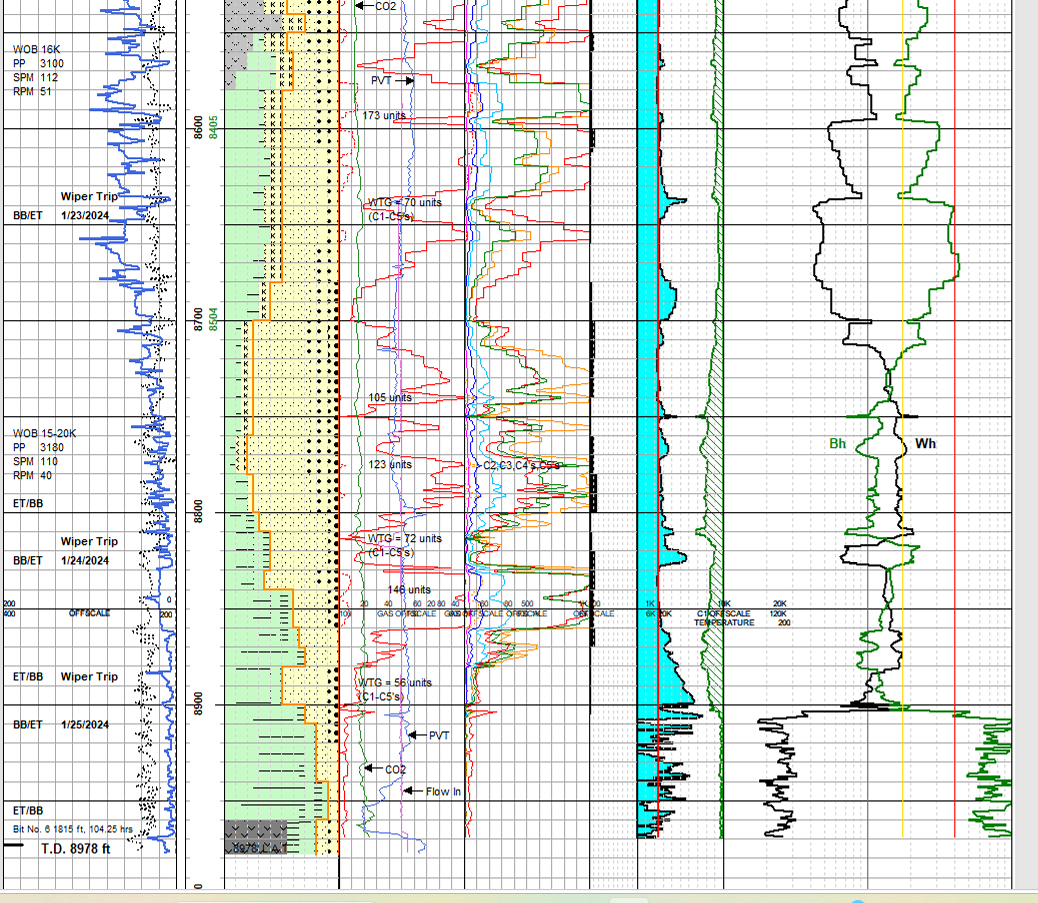

iLog design software

Complete Log Drafting Software

  • Flexible log design software will produce any format

  • Import and export data for multiple sources (ASCII, LAS 2.0, WITSML)

  • TVD Scale

  • Print to printer, plotter, PDF and continuous PDF as well as various raster formats

  • WYSIWYG data entry/editing

  • Embedded NOSQL database

  • Add sample (any) image to the mudlog

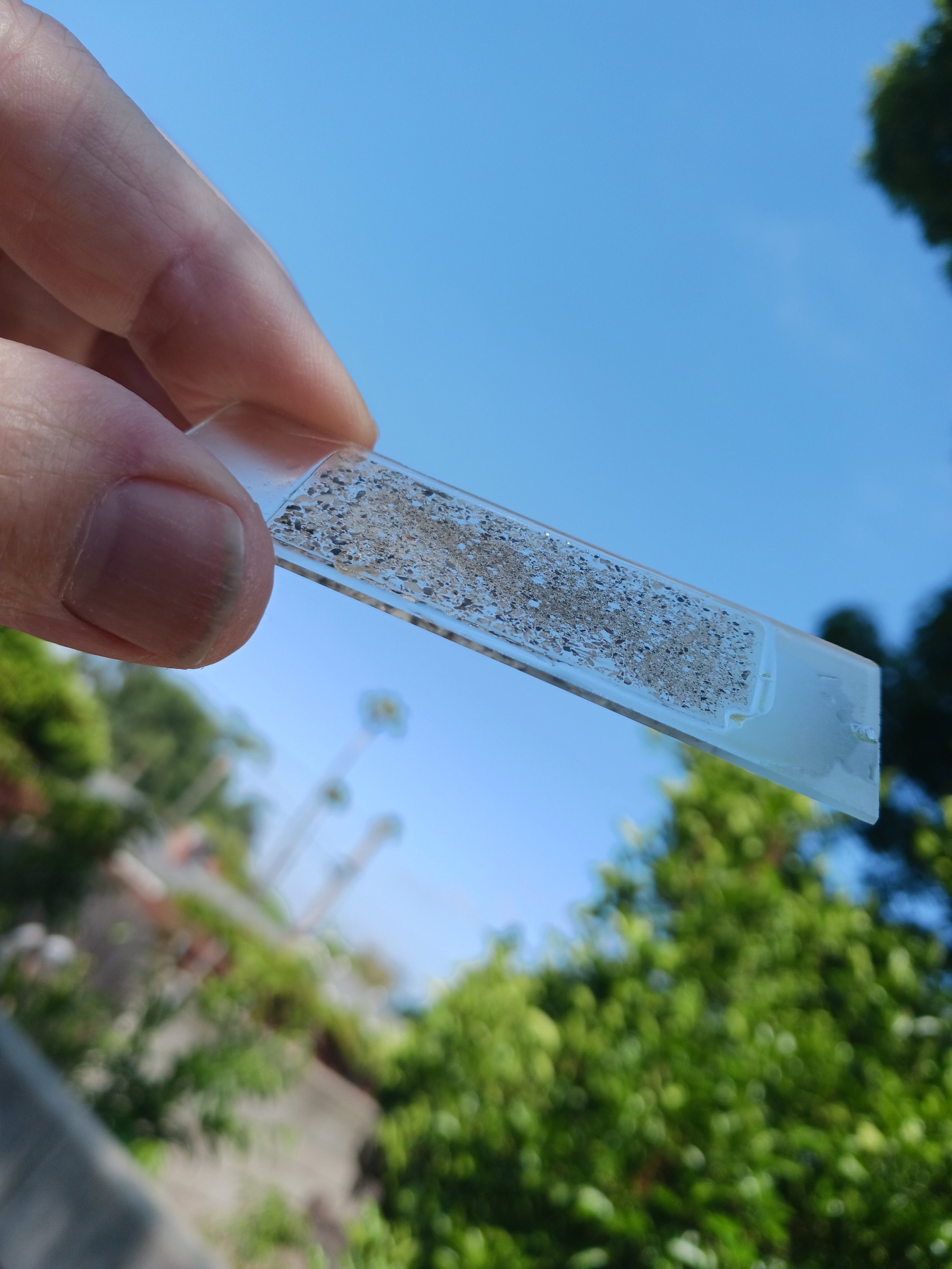

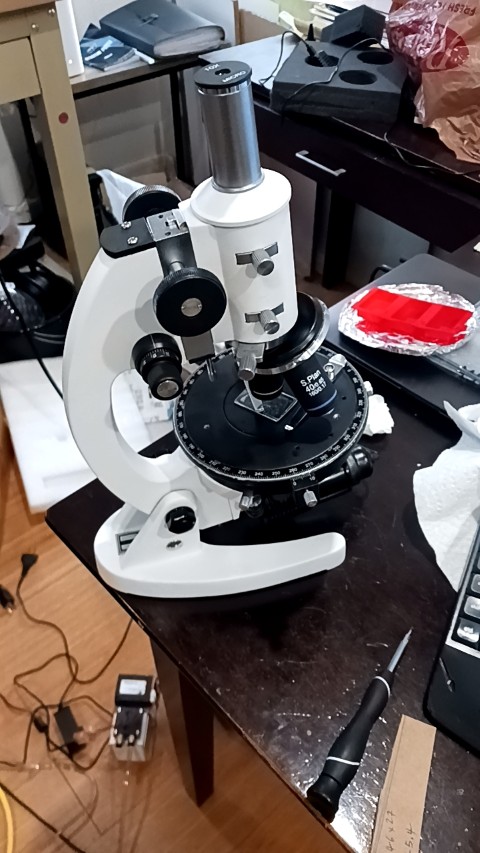

High Resolution Extended Deep Focus Sample Imaging

Extended Depth of Focus sample image (left) compared to standard microscope photo


RigFlex WitsSender

Rig-site aggregator and data buffer

More Information

Rig-site WITS data management (RigFlex WitsSender)

  • Unlimited WITS Serial/TCP and Modbus data feeds

  • Minimal rig-site configuration

  • Automatically send data to Itasca GeoData WITSML data aggregator

  • Embedded NOSQL database buffer will update WITSML data store when connection is restored resulting in no lost data in case of communication gaps

  • Instantly provide real-time web dashboards for your clients and partners worldwide

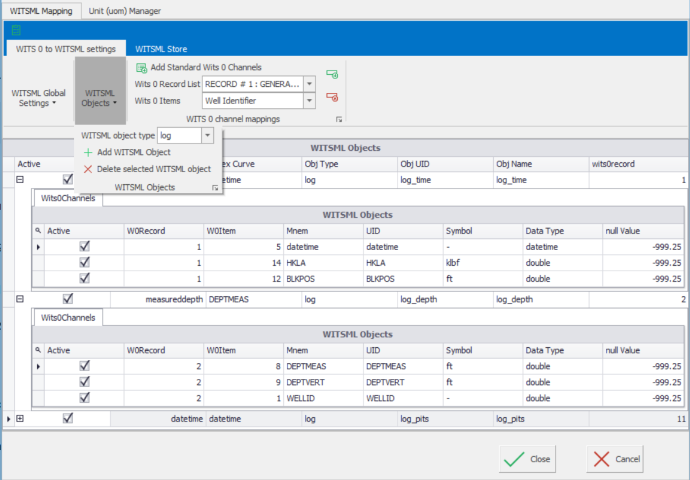

WITSML System Components


RIGFLEX™ WITSML Data Aggregator

Our RIGFLEX™ software aggregates common rig site data-streams such as WITS 0 and Modbus then saves to the WITSML Store located in our secure data center and/or a local store. As the name suggests, the software is very flexible for managing the data and presents a clean work flow including zero rig site configuration when appropriate.

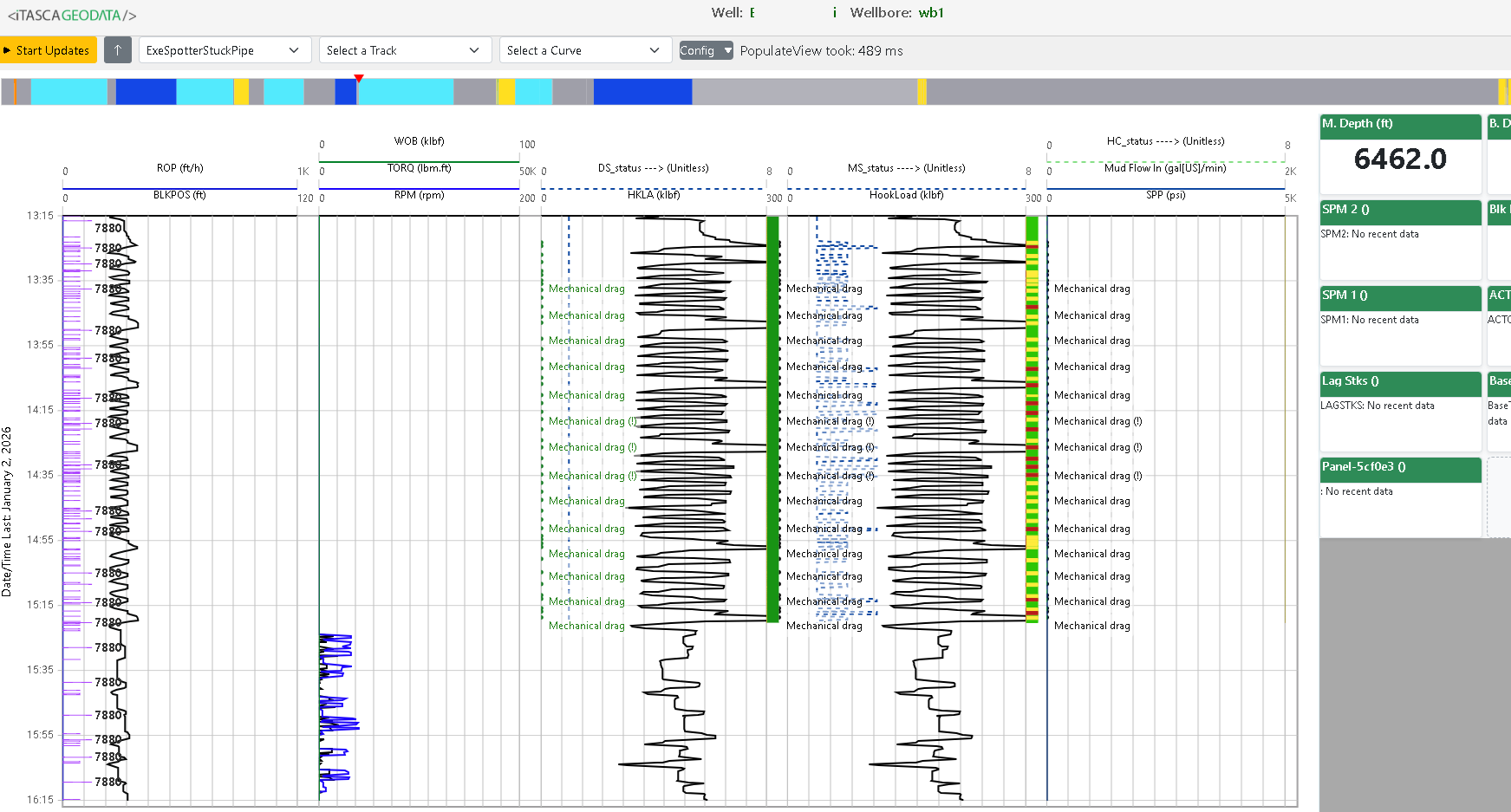

Note: The RigFlex Browser Dashboard is currently undergoing a design refresh.

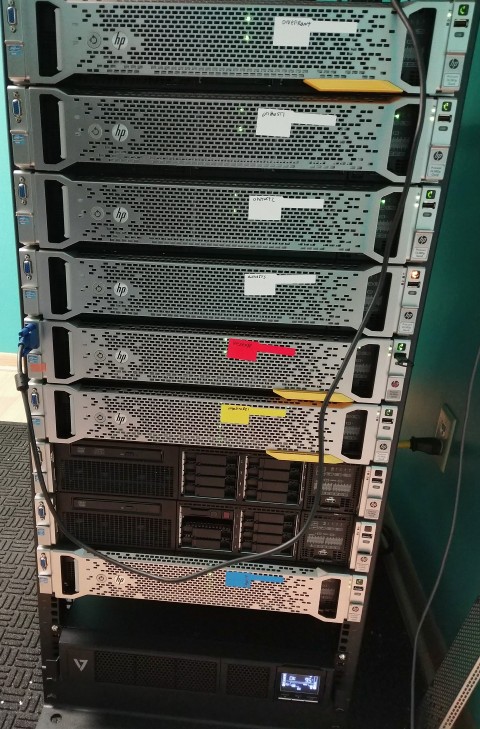

DATA CENTER

Itasca GeoData manages a secure in-house data center capable of operational and analytical Big Data workloads on WITSML drilling stores.


RIGFLEX™ DATA STORE

The RIGFLEX™ Data Store handles storage and access to data in the Industry standard WITSML format. It is also responsible for verifying the secure user identity and asset authorization providing fine grained control over what user has access certain assets, wells, logs, etc.

Note:This product uses open source WITSML technology developed by PDS
